Stacbond
ACM Aluminium Composite Panel System
🇪🇸
Stacbond aluminium composite panels feature dual aluminium skins bonded to a non-combustible A2 mineral or fire-retardant core. Their high stiffness, fire safety rating (A2‑s1, d0), flatness, and light weight make them perfect for ventilated façades in high-rise and high-occupancy projects — offering safety without sacrificing design potential
Non-combustible A2-rated ACM aluminium composite panels for ventilated facades. Lightweight, flat, and engineered for fire safety.
Stacbond is ideal for ventilated facades on commercial and institutional projects. The system uses a cassette or tray-style installation that allows easy access and replacement. Backed by rigorous testing to EN 13501-1 and CAN/ULC-S134, Stacbond meets fire and durability codes while delivering a sleek, modern aesthetic with long-term weather resistance.
Material Types
-
Aluminum Composite Panels (ACM)
-
A2 fire-rated core
Systems
-
Ventilated Facade System
-
cassette / rout-and-return
Testing
-
CAN/ULC-S102-18 A CLASS
-
CAN/ULC-S134
-
EN 13501-1 A2-s1,d0
References
Downloads
Panel Products
Stacbond A2

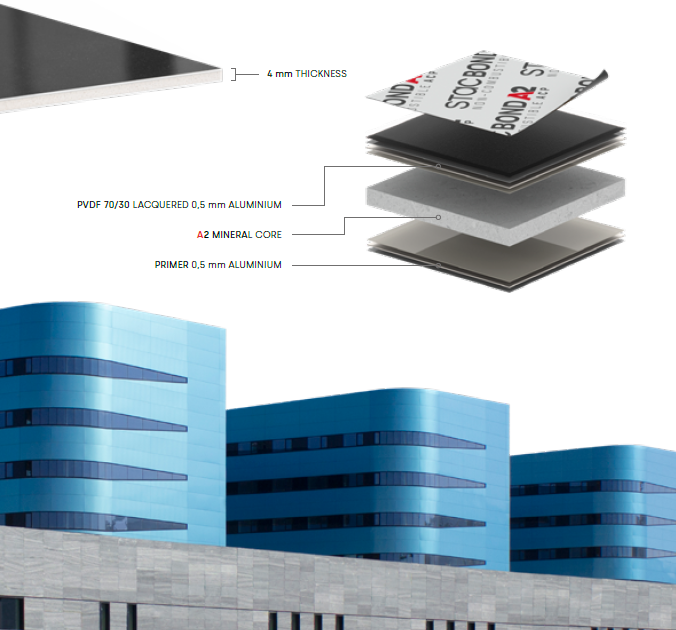

STACBOND® A2 is a non-combustible composite panel in 4mm thickness made of PVDF 70/30 lacquered 0.5 mm aluminum, A2 mineral core, and primer 0.5 mm aluminum.
Stacbond FR

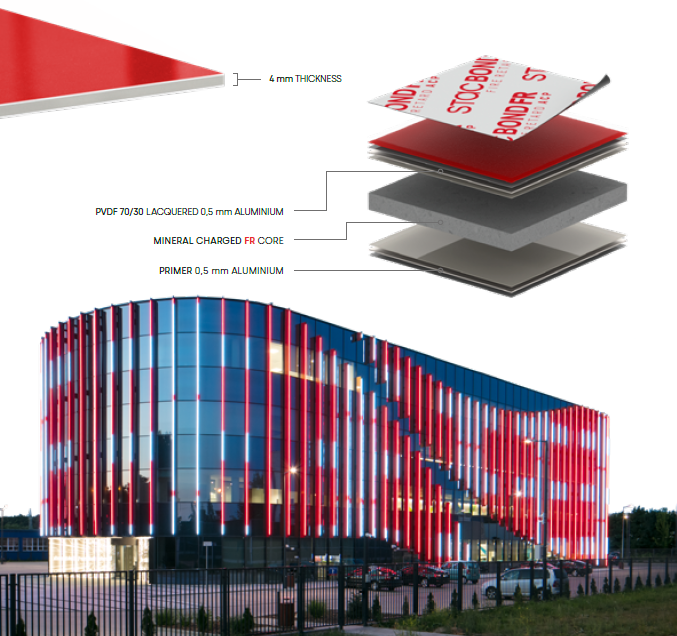

STACBOND FR panels are a fire retardant composite panel in 4mm thickness made of PVDF 70/30 lacquered 0.5 mm aluminum, mineral charged FR core, primer 0.5 mm aluminum.
Standard Dimensions
Stacbond A2
Width (min. / max.) mm 800 / 2.000
Length (min. / max.) mm 2.000 / 6.000
Thickness tolerance mm – 0,15 / + 0,20
Width tolerance mm ± 2
Length tolerance mm – 0 / + 15
Diagonals tolerance mm ± 3
Width tolerance of the protective film mm 0; -5
Stacbond FR
Width (min. / max.) mm 1.000 / 2.000**
Length (min. / max.) mm 2.000 / 6.000**
Thickness tolerance mm – 0,15 / + 0,20
Width tolerance mm – 0 / + 4
Length tolerance mm – 0 / + 15
Diagonals tolerance mm ± 3
Width tolerance of the protective film mm 0; -5
Finishes + Colours
Finishes
Numerous Finishes including: Brushed, Concrete, Industrial, Iridiscent, Metallic, Solid, Stone, Textured, Wood.

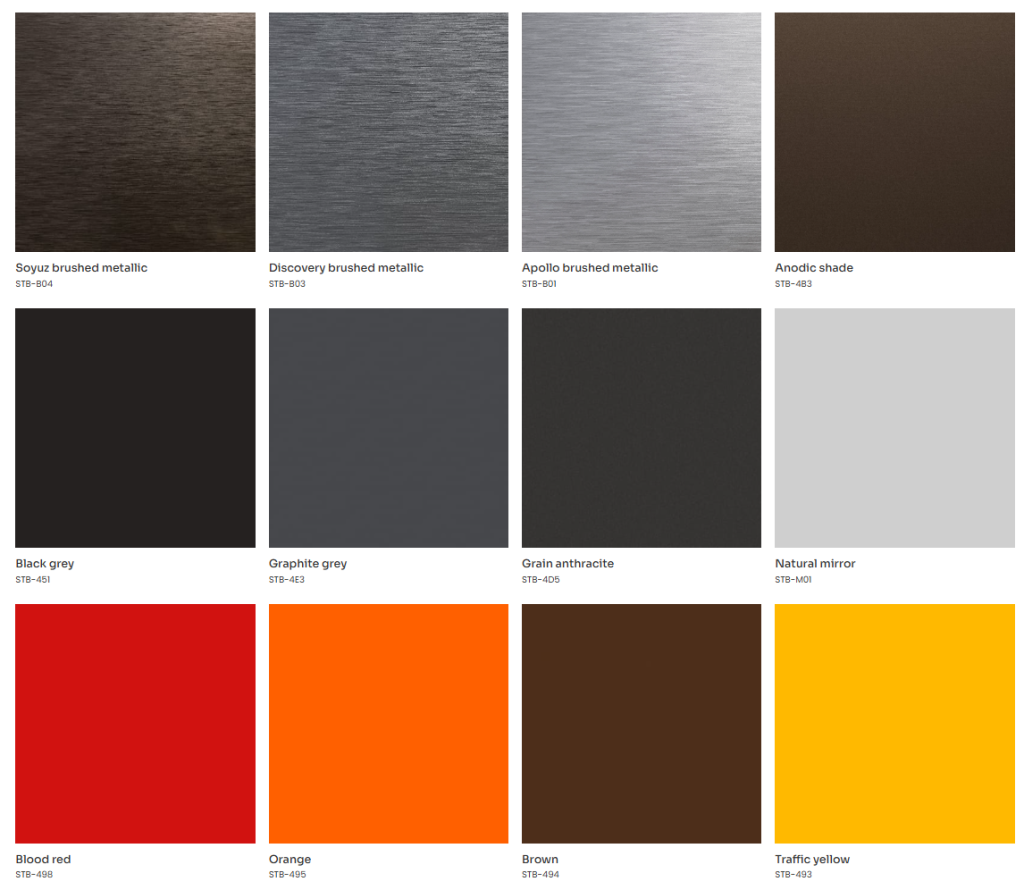

Colour Collections
Numerous colours in 8 Stacbond Collections: Wood, Metro, Mineral, Neubau, Special, Anodic, Metallic, Solid
