Corium
Extruded Brick Rain Screen Facade
🇩🇪
Corium is a revolutionary brick cladding system that blends the durability of natural clay brick with the efficiency of modern rainscreen technology. The system consists of extruded clay bricks that mechanically clip into corrosion-resistant metal rails, allowing for precise alignment and rapid installation.
CORIUM™ is 1/3 the weight of face brick, is mechanically attached to a steel substrate and utilizes a flexible mortar, making the system perfectly suited for high-rise, commercial, and institutional projects.
Lightweight – only 14 pounds psf, and takes one third less time of traditional brick. Corium provides the authentic appearance of traditional masonry while offering superior performance in thermal efficiency, fire safety, and weather resistance.
Multi-directional, unlimited bonds, patterns, soffits, ceilings. Available in a variety of textures and colors, it’s an ideal solution where traditional aesthetics and modern performance must coexist.
Material Types
-
Extruded clay brick
Systems
-
Closed Joint Brick & Mortar System
-
Ventilated Rainscreen System
-
Magnelis Tray
Testing
-
AAMA 501.1 Water Penetration
-
AAMA 501.5 Thermal Cycling
-
ASTM E283 E283-04 Air Leakage
-
ASTM 331 331-00 (2009) – Water Penetration
-
ASTM 330 330-02 (2010) Structural Performance, Air & Water
-
ASTM E136 (Noncombustible)
References
Downloads
Standard Profiles
Standard Dimensions
Adjustable 3/8″ Mortar Joints
Brick Type
Specified Size H x L (in)
Nominal Size H x L (in)
Modular
Norman
Roman
Utility
2 1/4″ x 7 5/8″
2 1/4″ x 11 5/8″
1 5/8″ x 11 5/8″
3 5/8″ x 11 5/8″
2 2/3″ x 8″
2 2/3″ x 12″
2″ x 12″
4″ x 12″
Drained / Back Ventilated Rainscreen
Water enters the cavity in limited amounts and is prevented from entering the building. Moisture can easily dry since the cavity is vented, causing the water to simply evaporate.

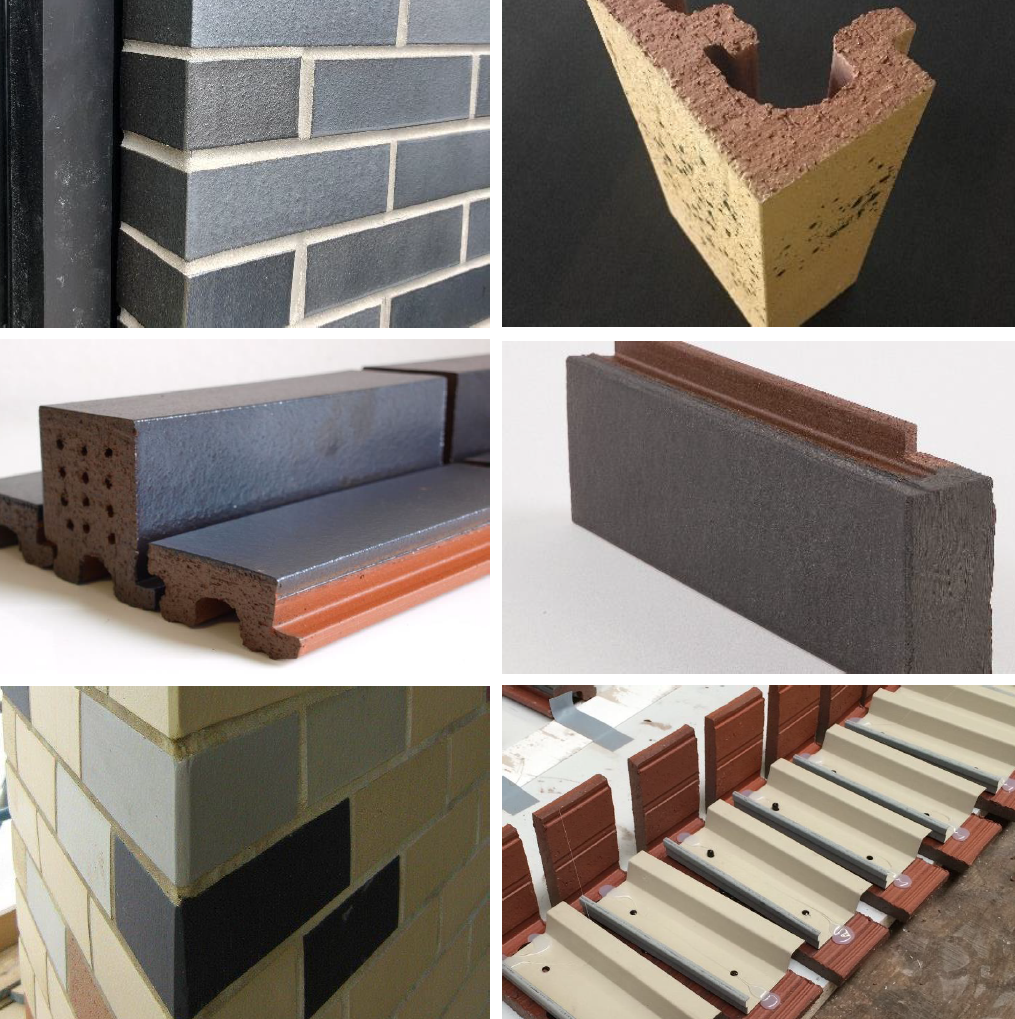

Shapes + Textures

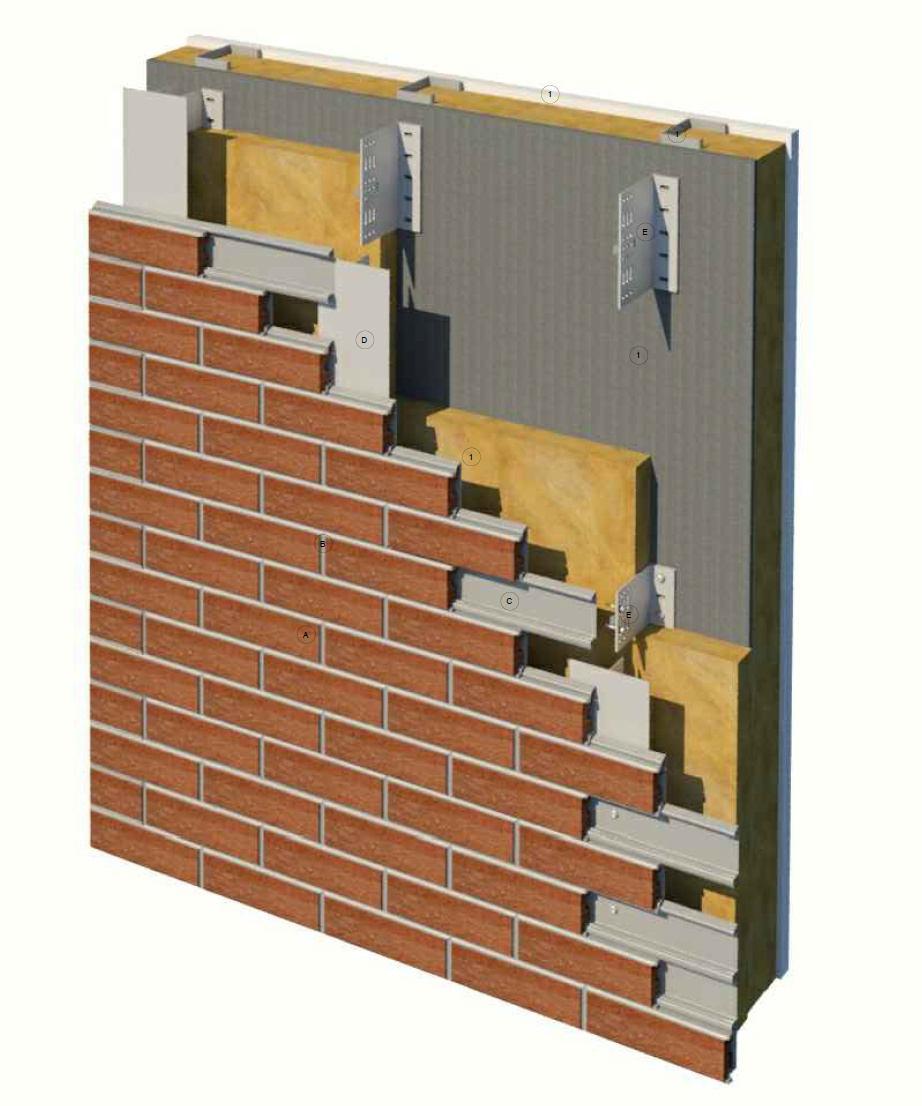

Brick Cladding System
Installed with interlocking HPS 200 metal trays attached to vertical supports. Clipped into place and ready for mortar.
Finishes + Colours
Corium Colours
140+ standard colours
Corium Mortar Colours
10 mortar colours
Corium Glazed Colours
32 glazed colours
