Ceraclad
Ceramic-Coated Fibre Cement Panels
🇯🇵
CeraClad is a high-performance fiber cement panel system featuring a ceramic-coated surface for long-lasting color, weather resistance, and fire protection. Made in Japan, CeraClad offers a closed-joint rainscreen system that improves thermal performance and durability while maintaining a clean, seamless appearance.
Panels are factory-finished and require no painting or sealing.
Tested to meet CAN/ULC-S114 (Standard Test, Non-Combustibility in Building Material), CAN/ULC S101 1-hr Fire Rated Assembly, and ASTM E330 (Static Pressure Wind Loads). CeraClad is ideal for institutional, residential, and commercial projects requiring a sustainable, low-maintenance self-cleaning facade.
Material Types
-
Mid-density fibre cement
Systems
-
Ventilated facade system
-

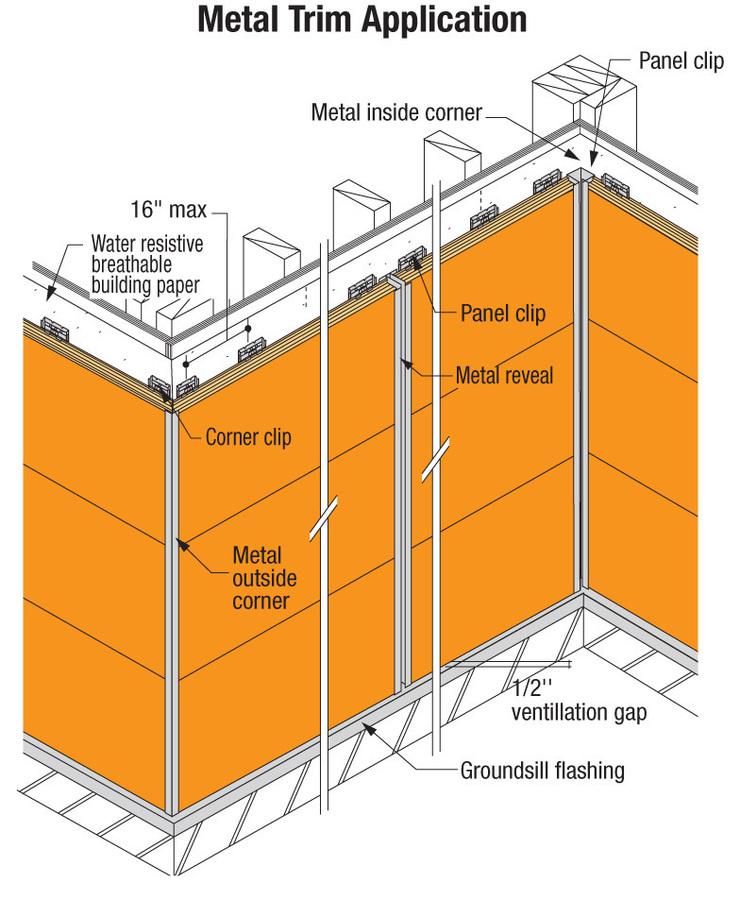

Closed Joint Panel System
-
Open Joint Panel System
-
Rainscreen System
Testing
-
CAN/ULC S114
-
CAN/ULC S101
-
ASTM E330

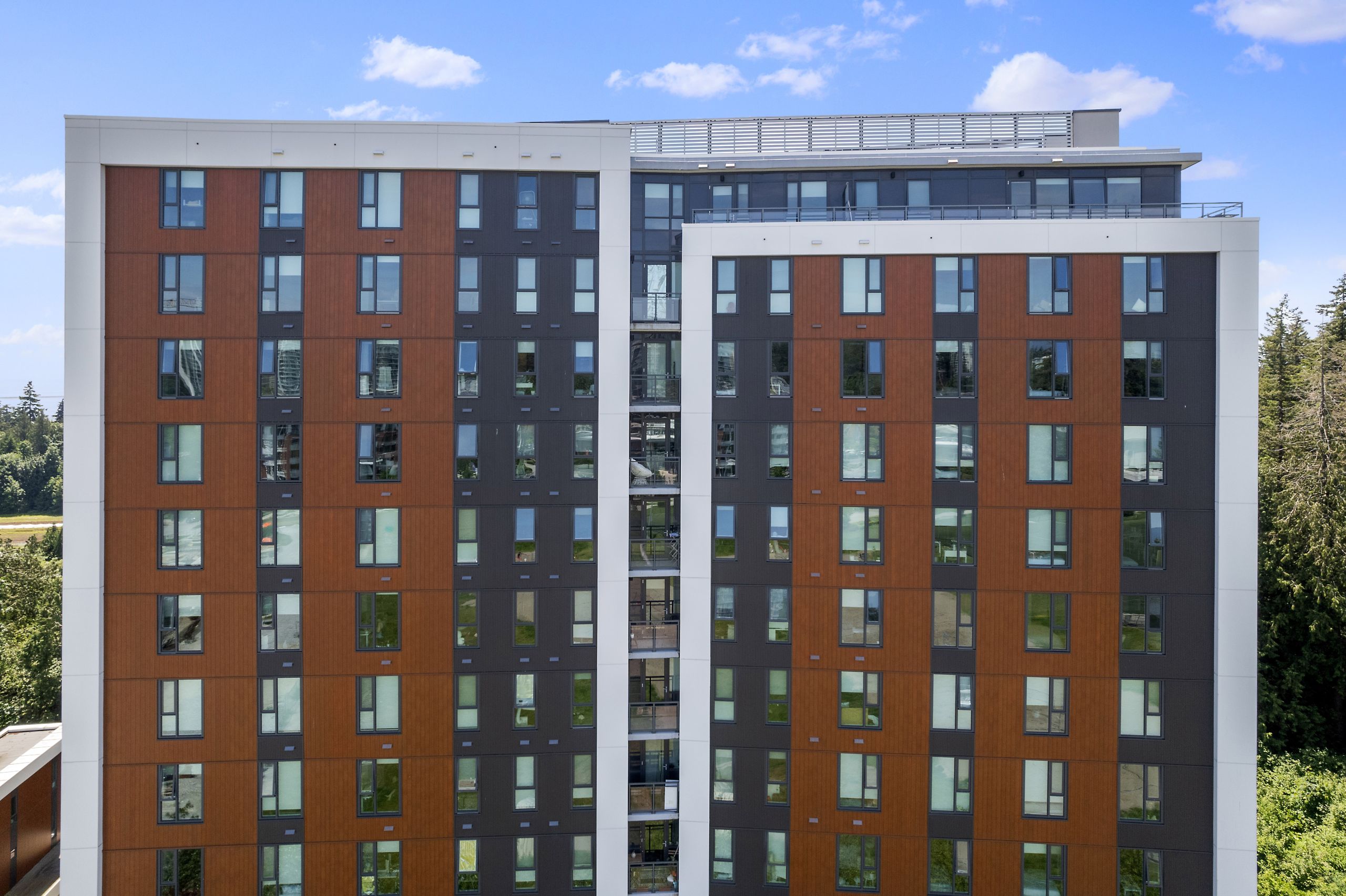

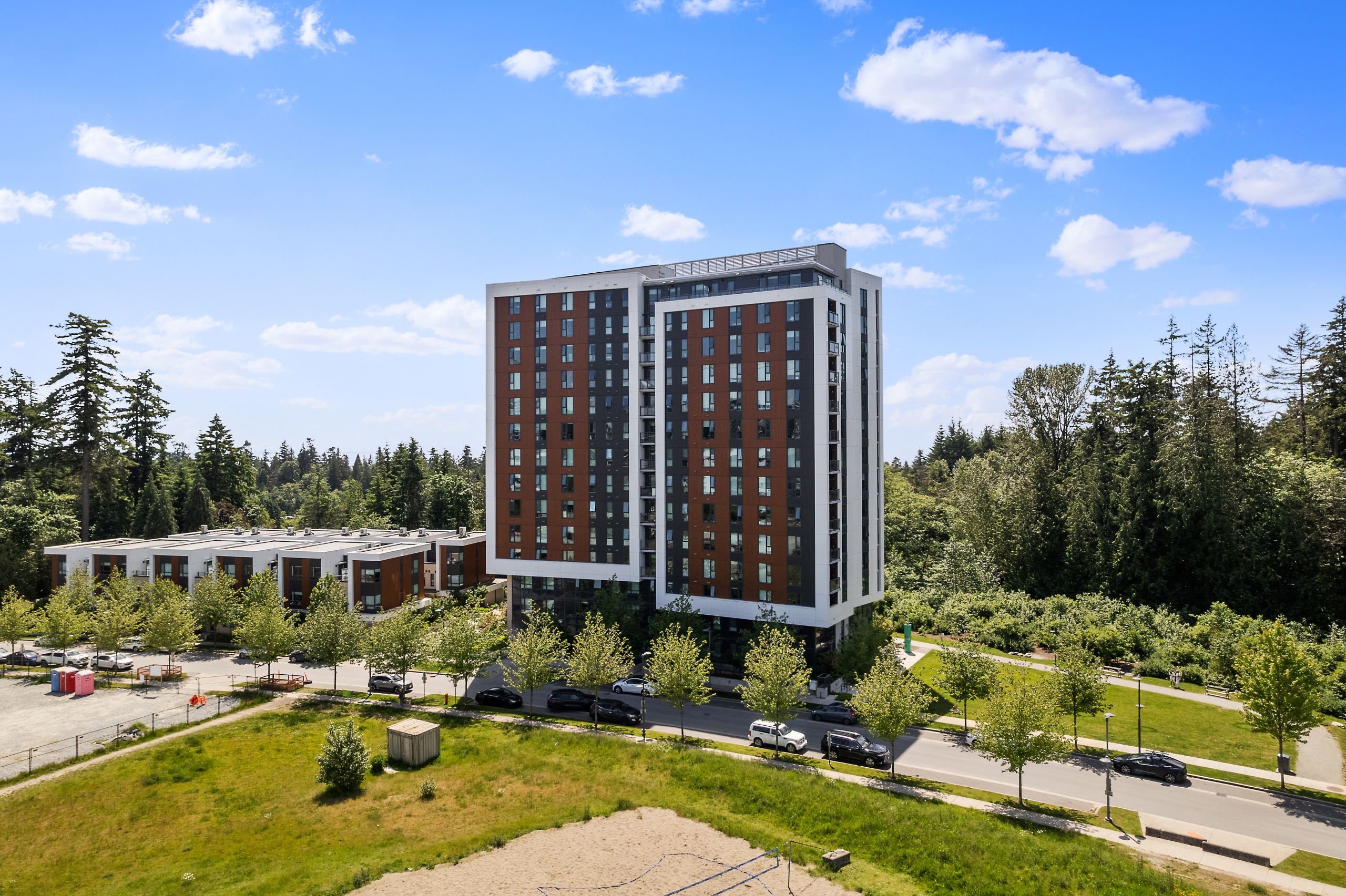

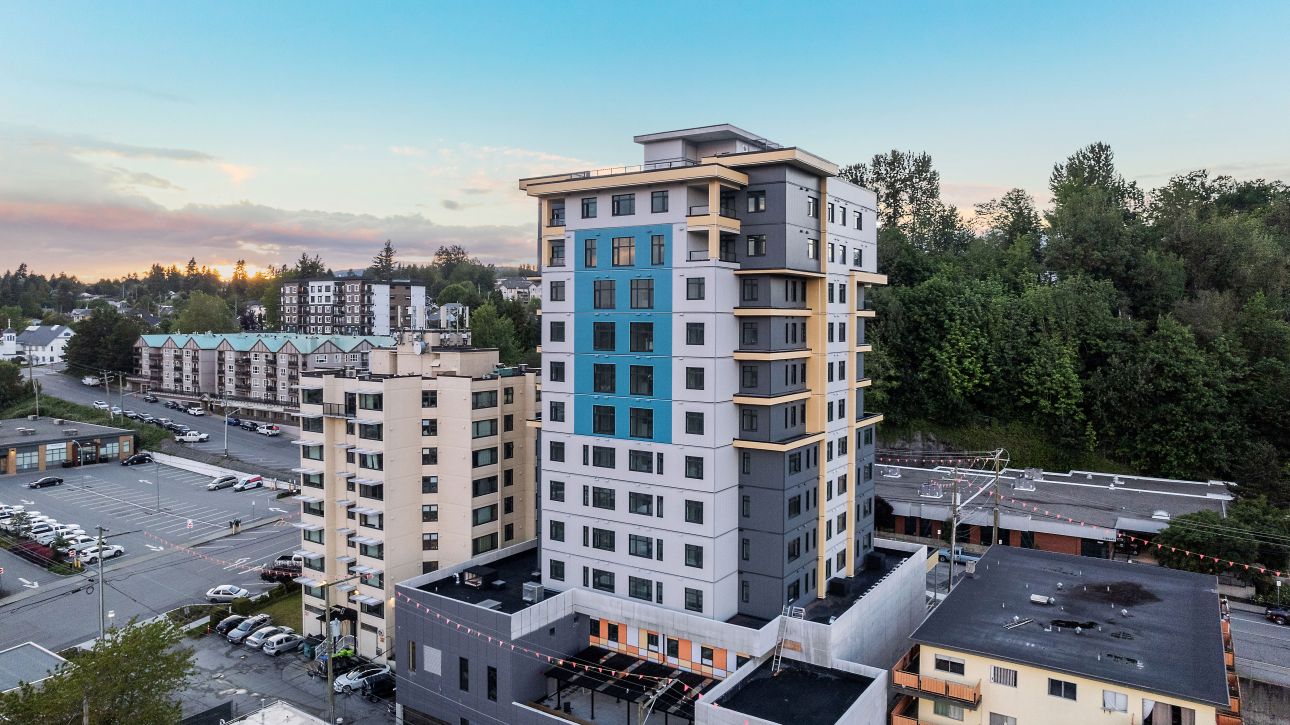

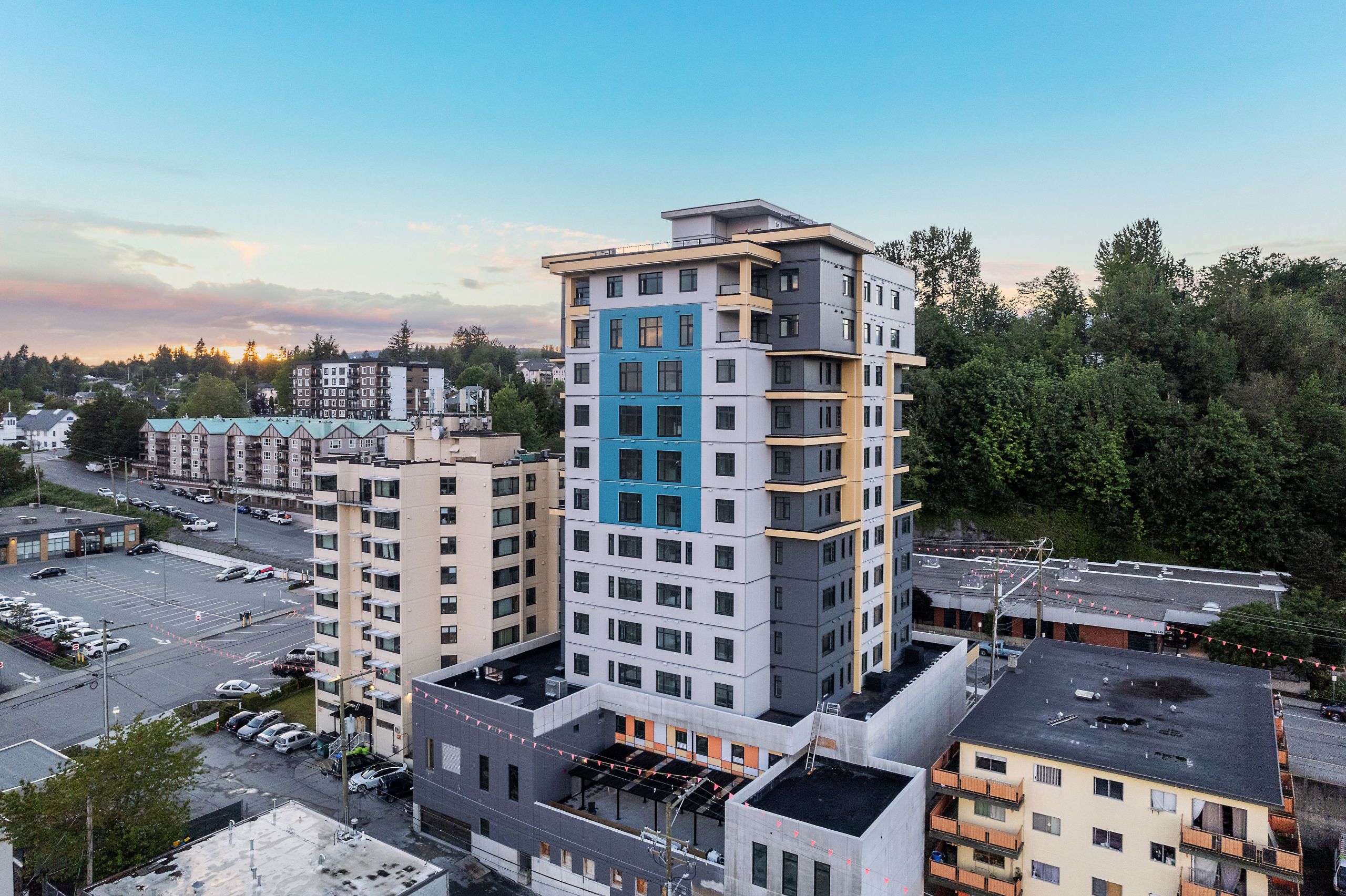

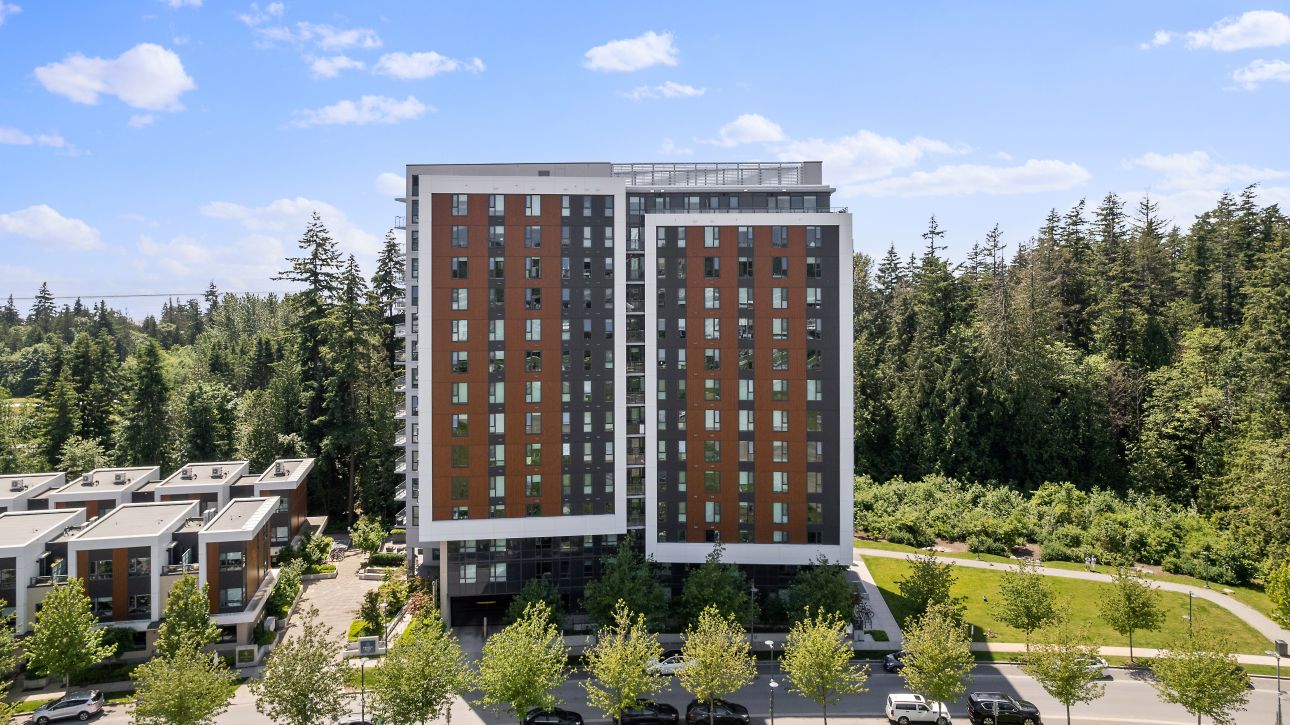

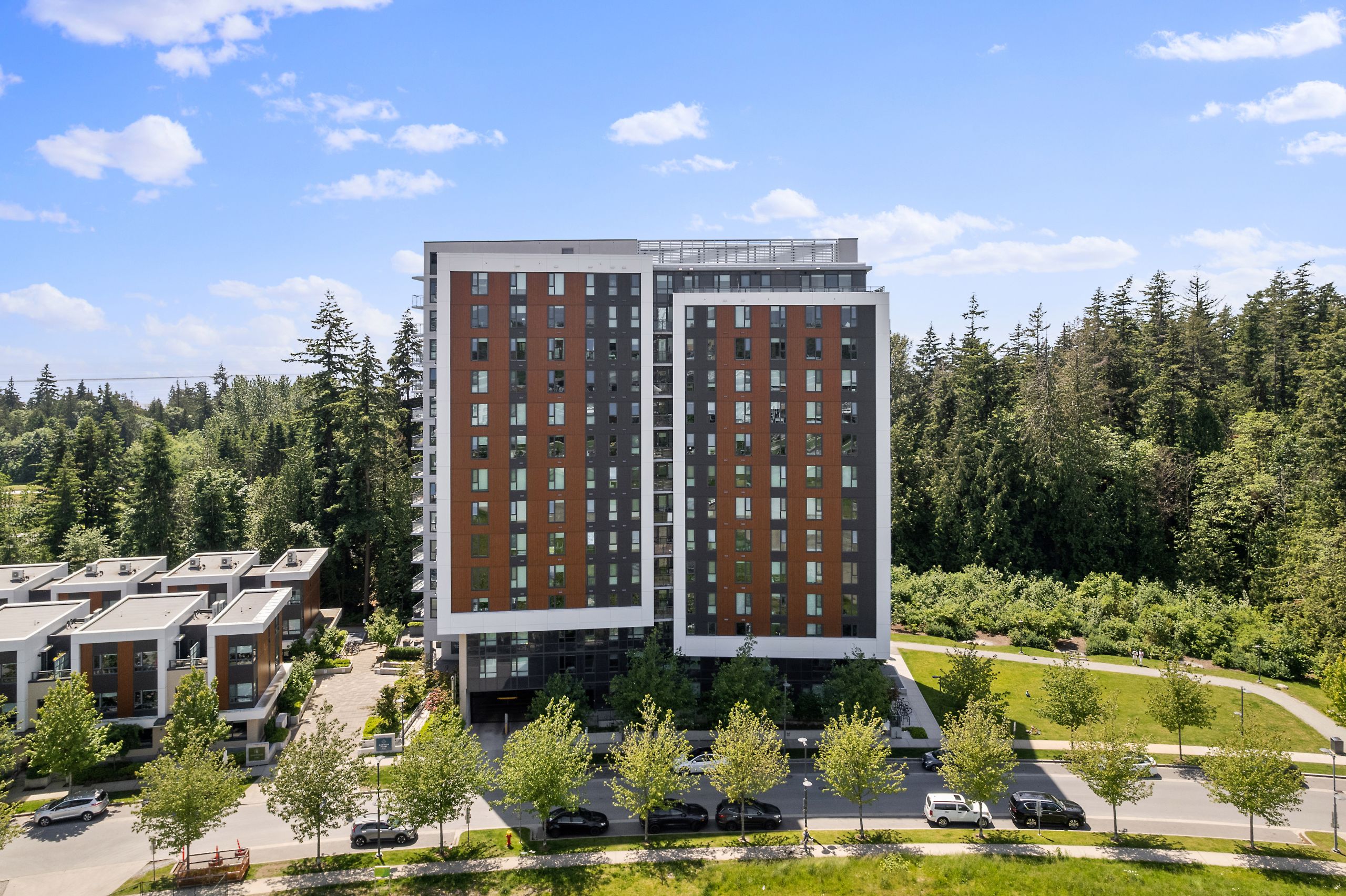

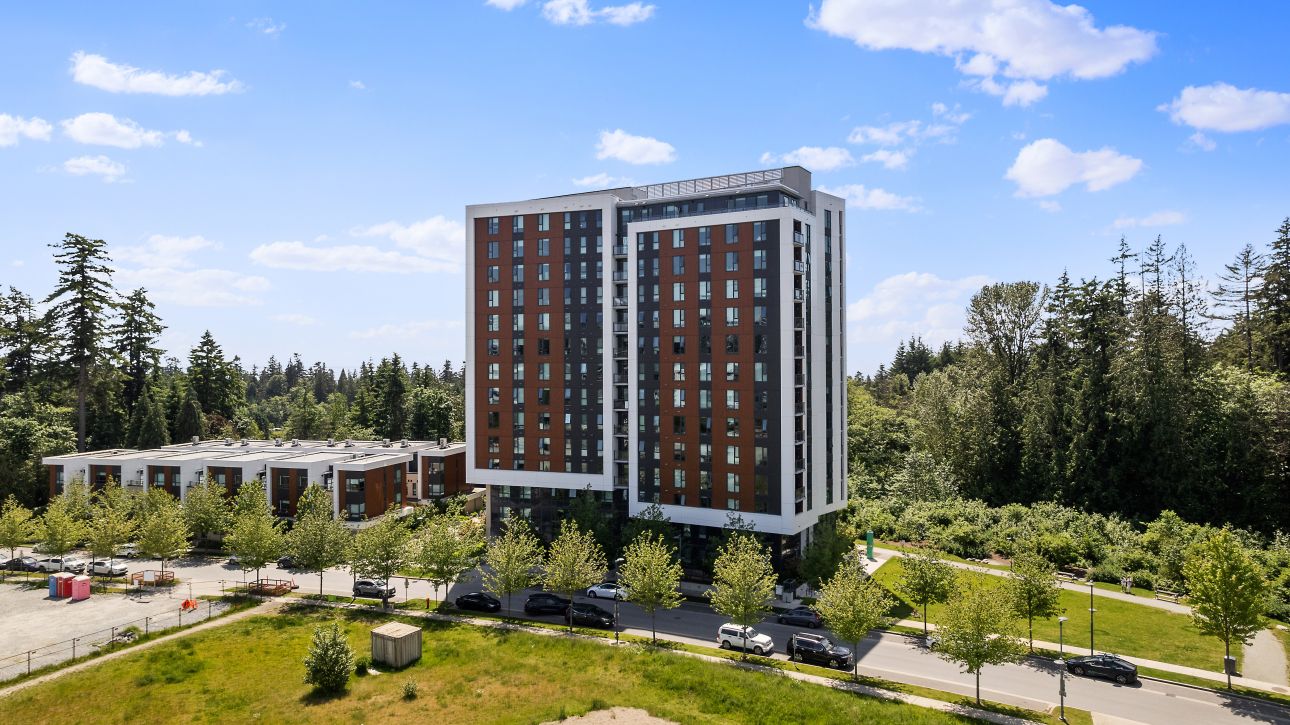

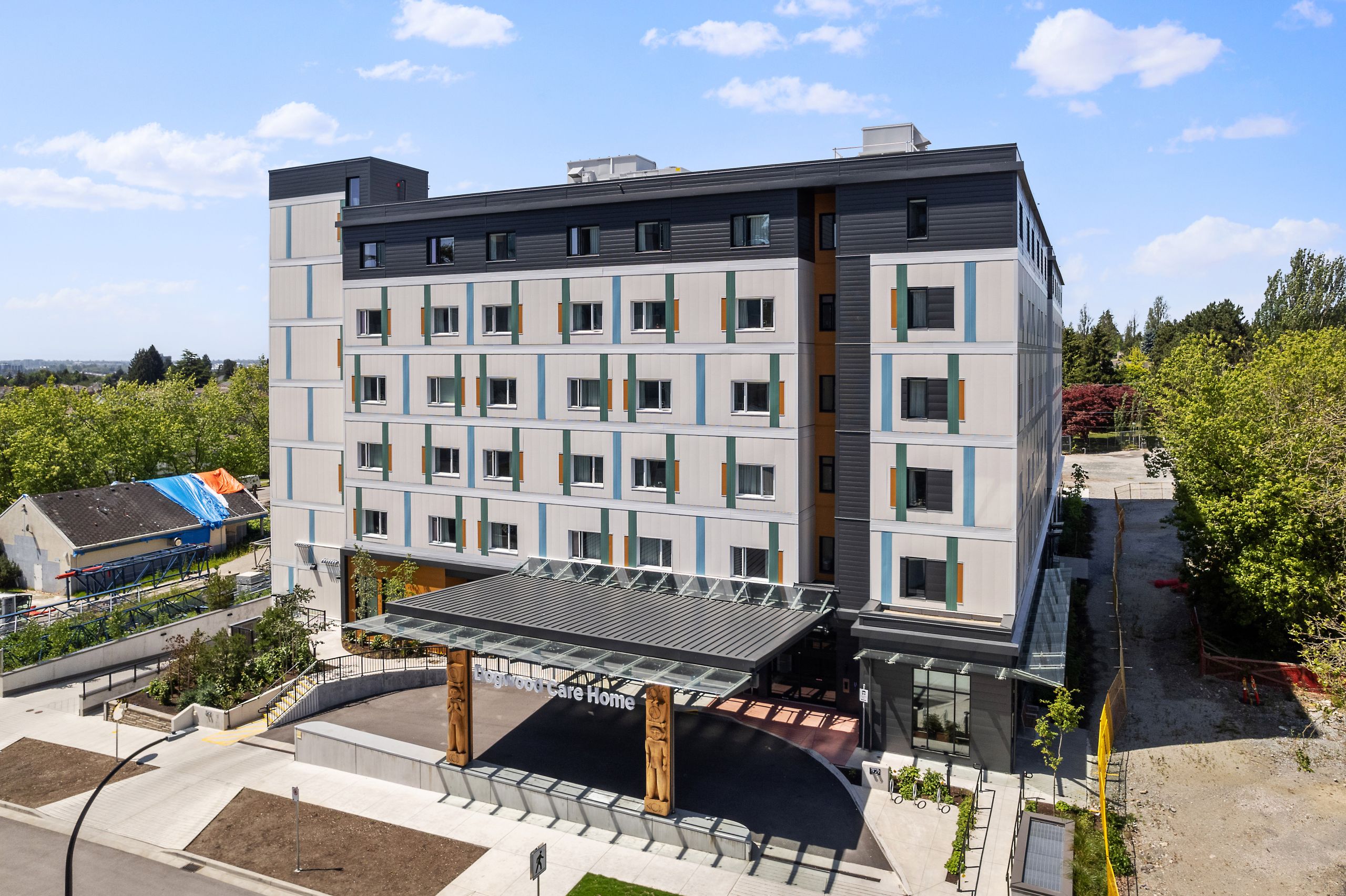

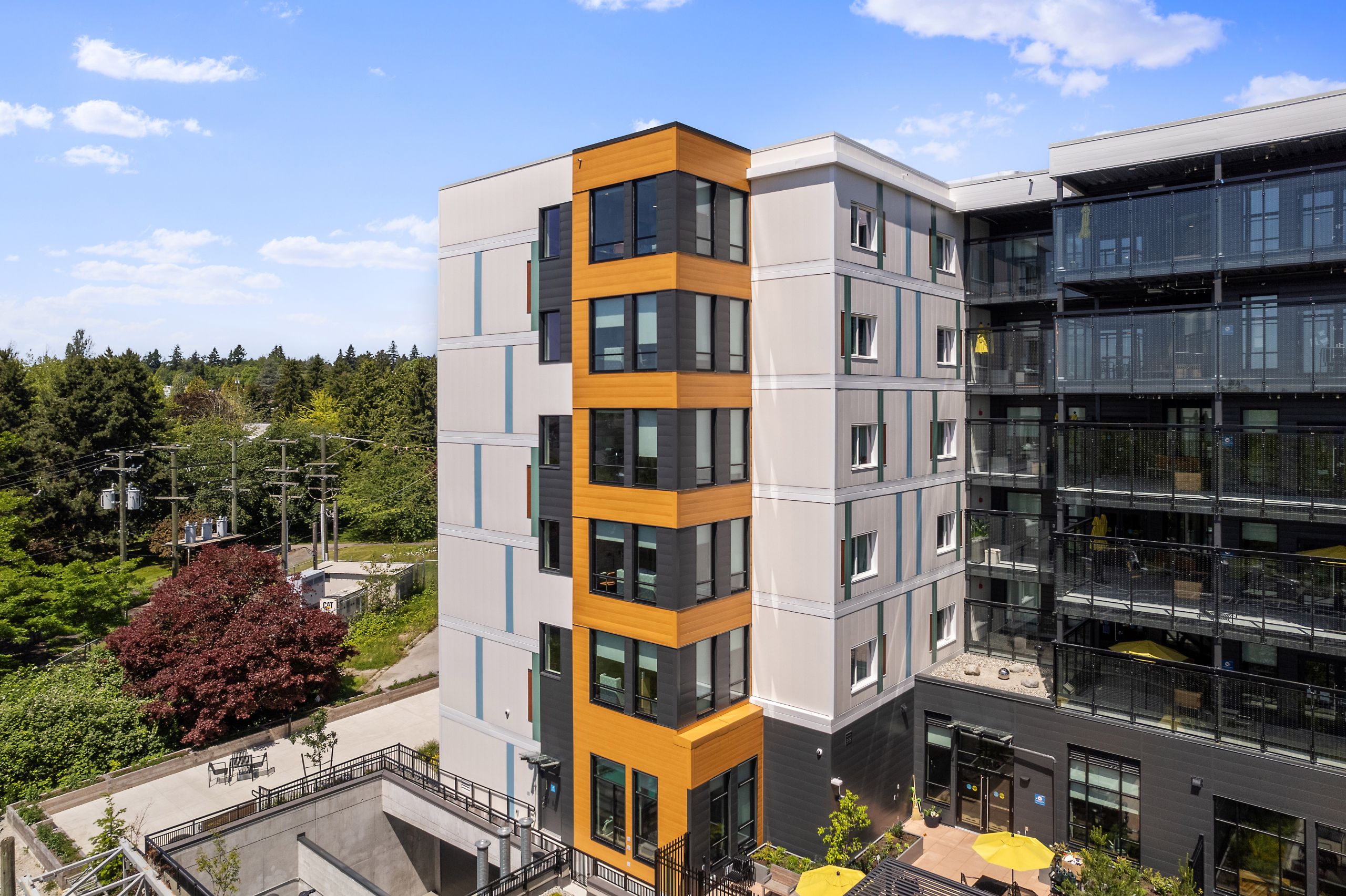

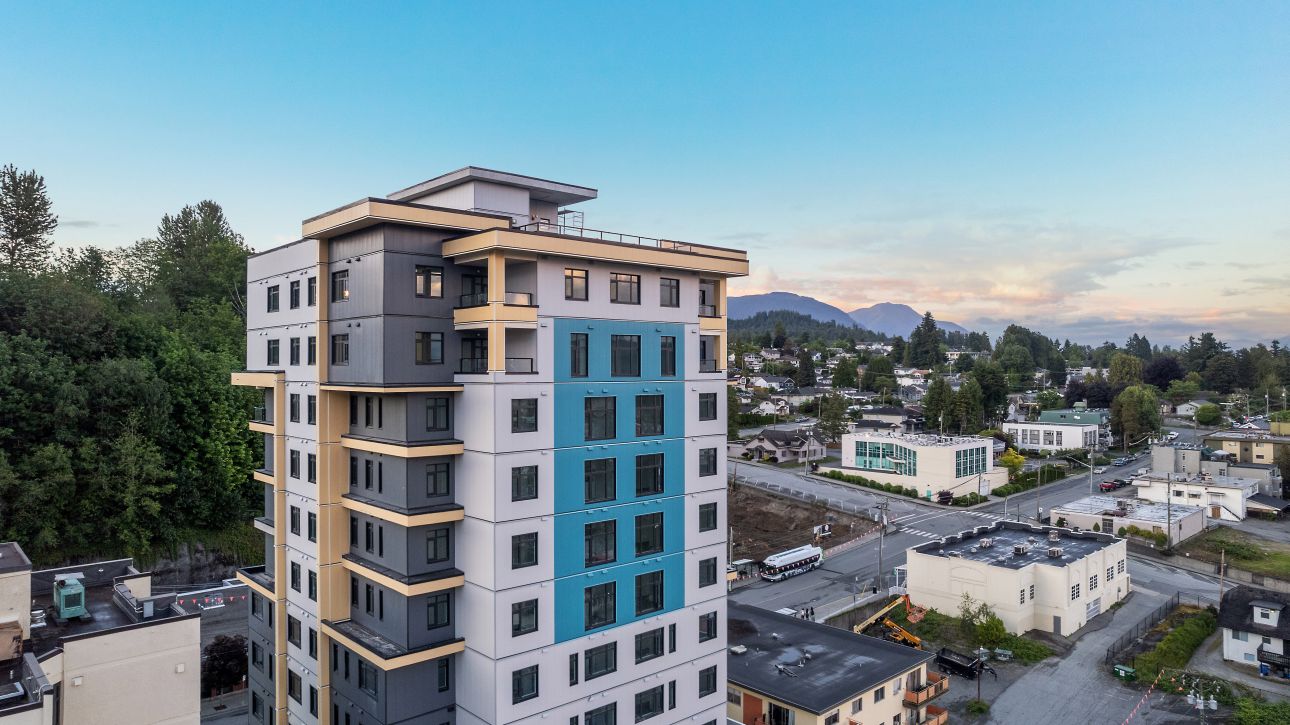

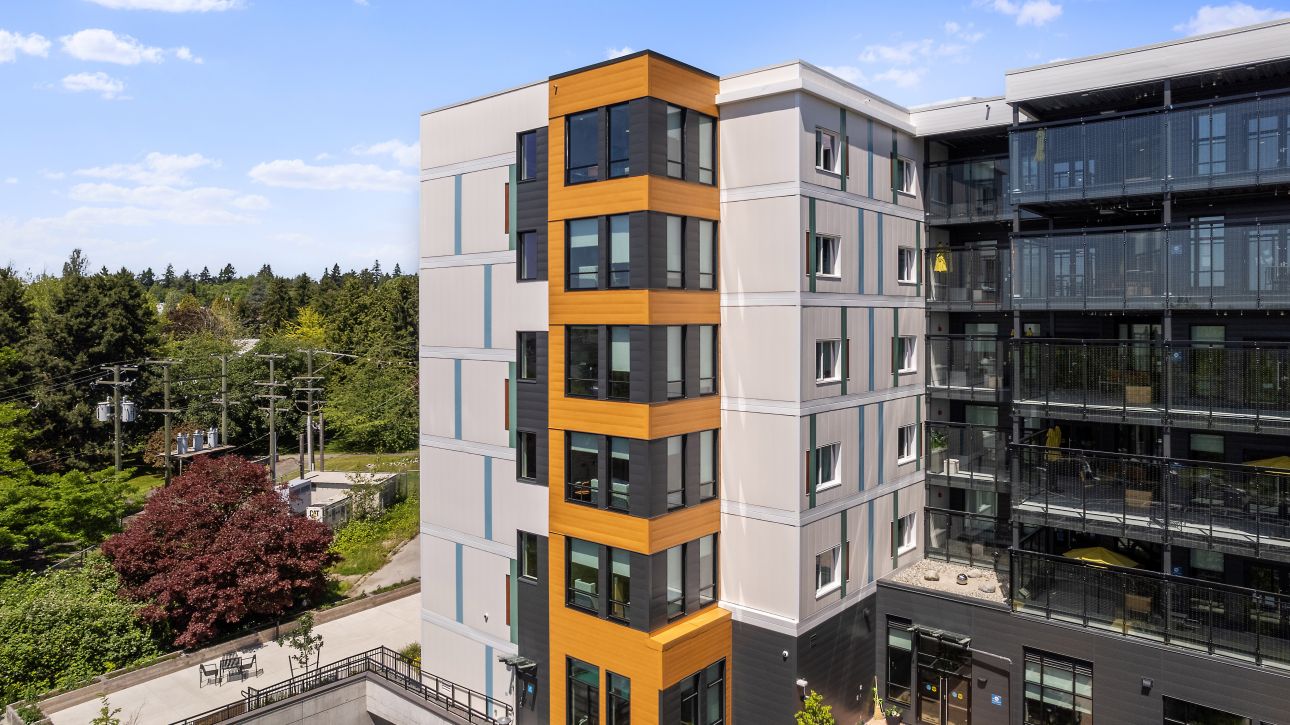

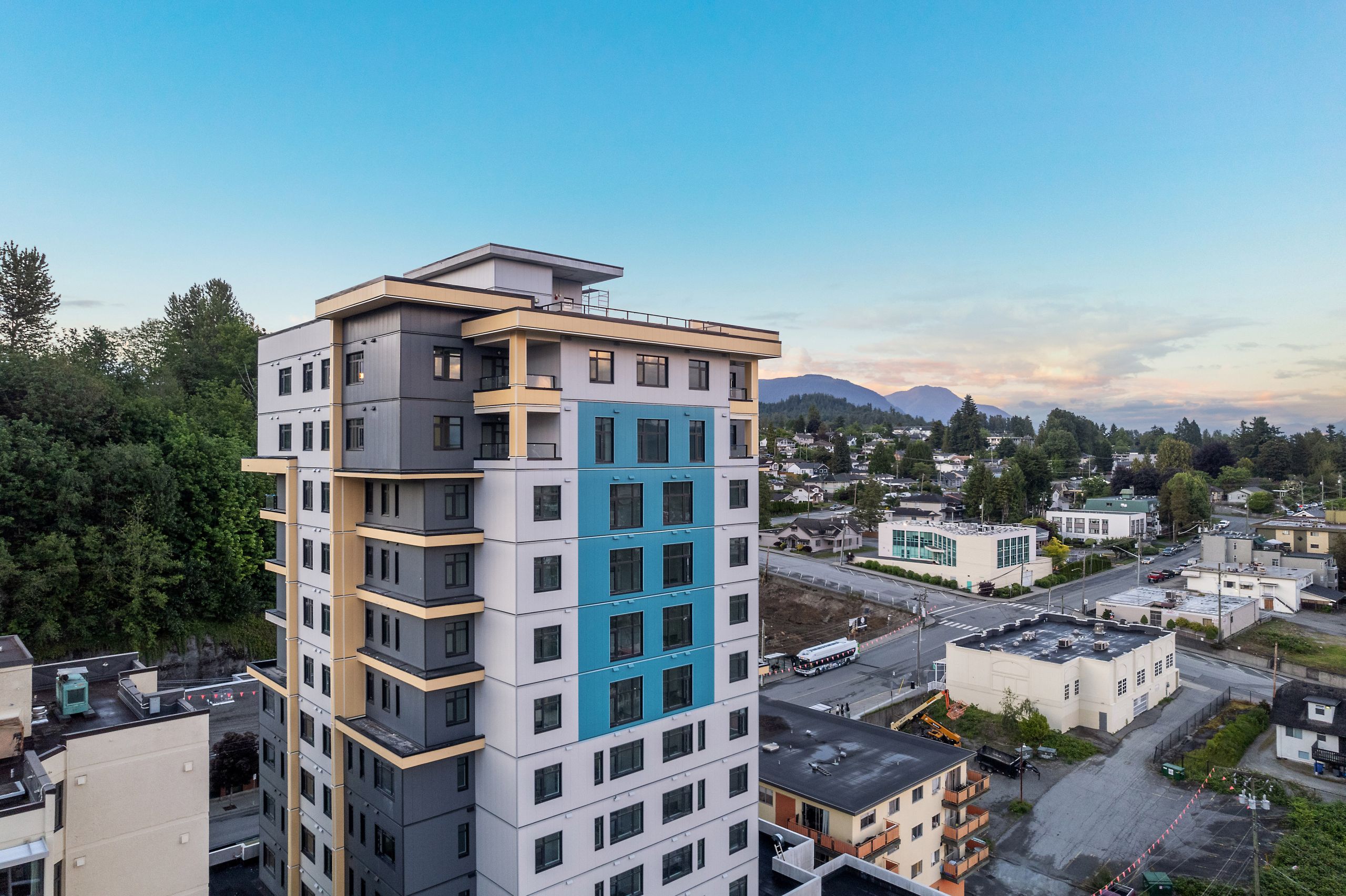

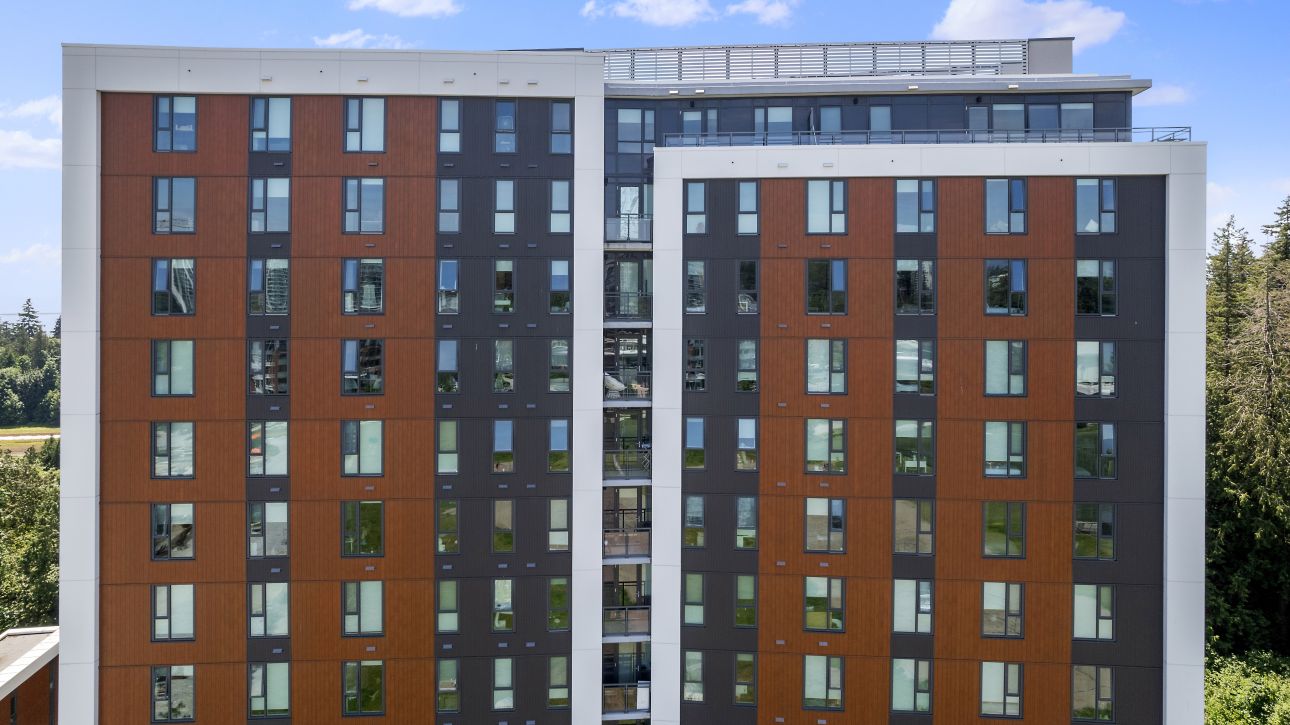

References

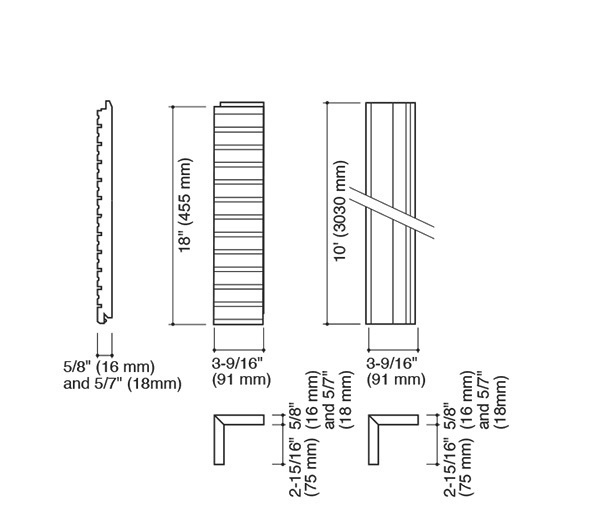

Standard Profiles
Standard Dimensions
CERACLAD helps you to deliver fast, high-quality rainscreen installations on every project – every time.
Thickness
16 mm +/- 0.6 mm
Length
3030 mm +/- 1.0 mm.
Width
455 mm +/- 0.5 mm.

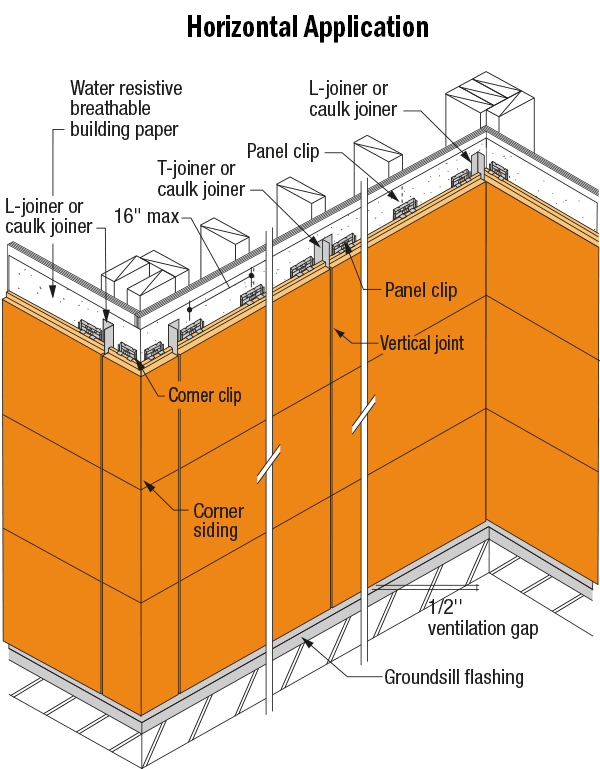

Panel Orientation
CERACLAD siding panels are designed to allow both horizontal and vertical applications, providing greater design flexibility for architects.
Self Cleaning Cladding System
The CERACLAD Self-Cleaning Cladding System utilizes a photocatalytic coating that decomposes dirt and grime when exposed to sunlight, and its super-hydrophilic properties help rain wash it away, achieving a self-cleaning effect.
Shapes + Textures

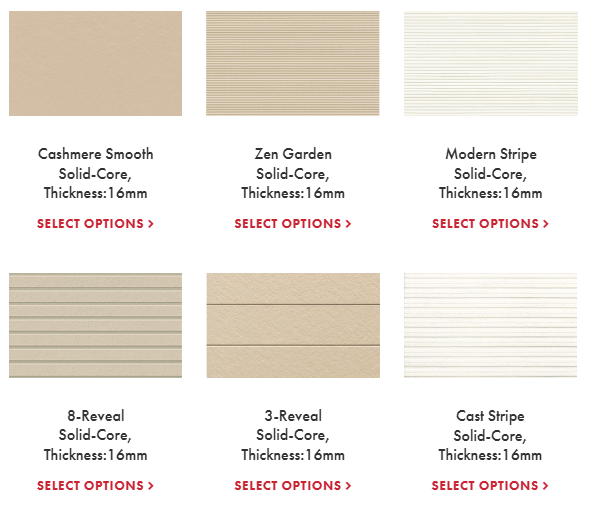

Standard
Triple Coated / Custom Colors
Wood Series
Triple Coated

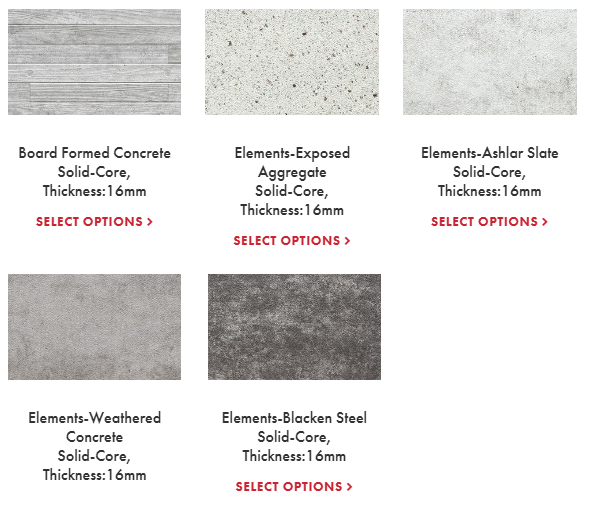

Concrete Series
Triple Coated

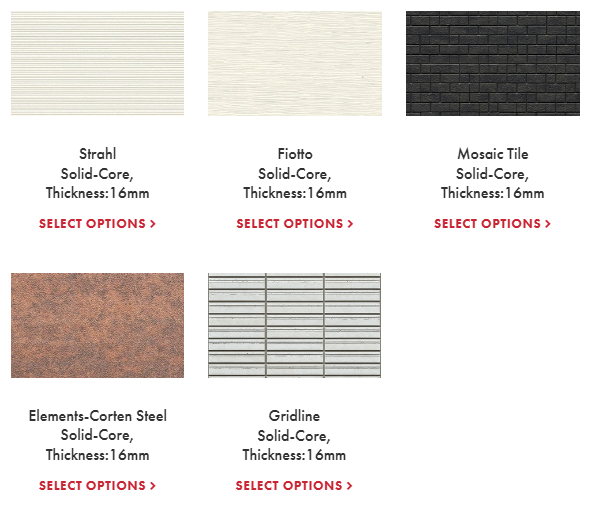

Original Design
Triple Coated

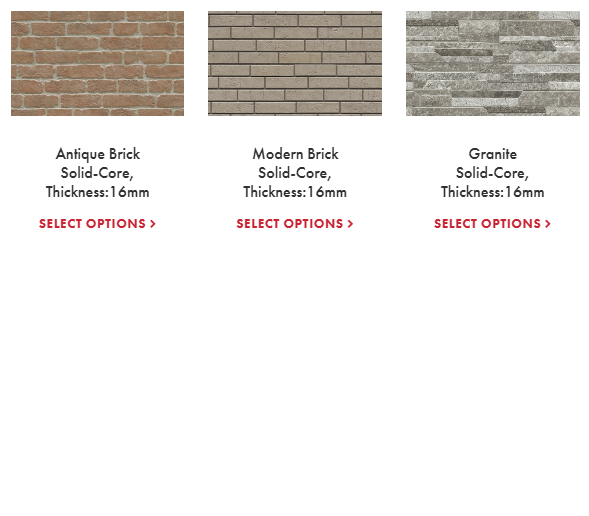

Stone + Brick Series
Triple Coated
Finishes + Colours

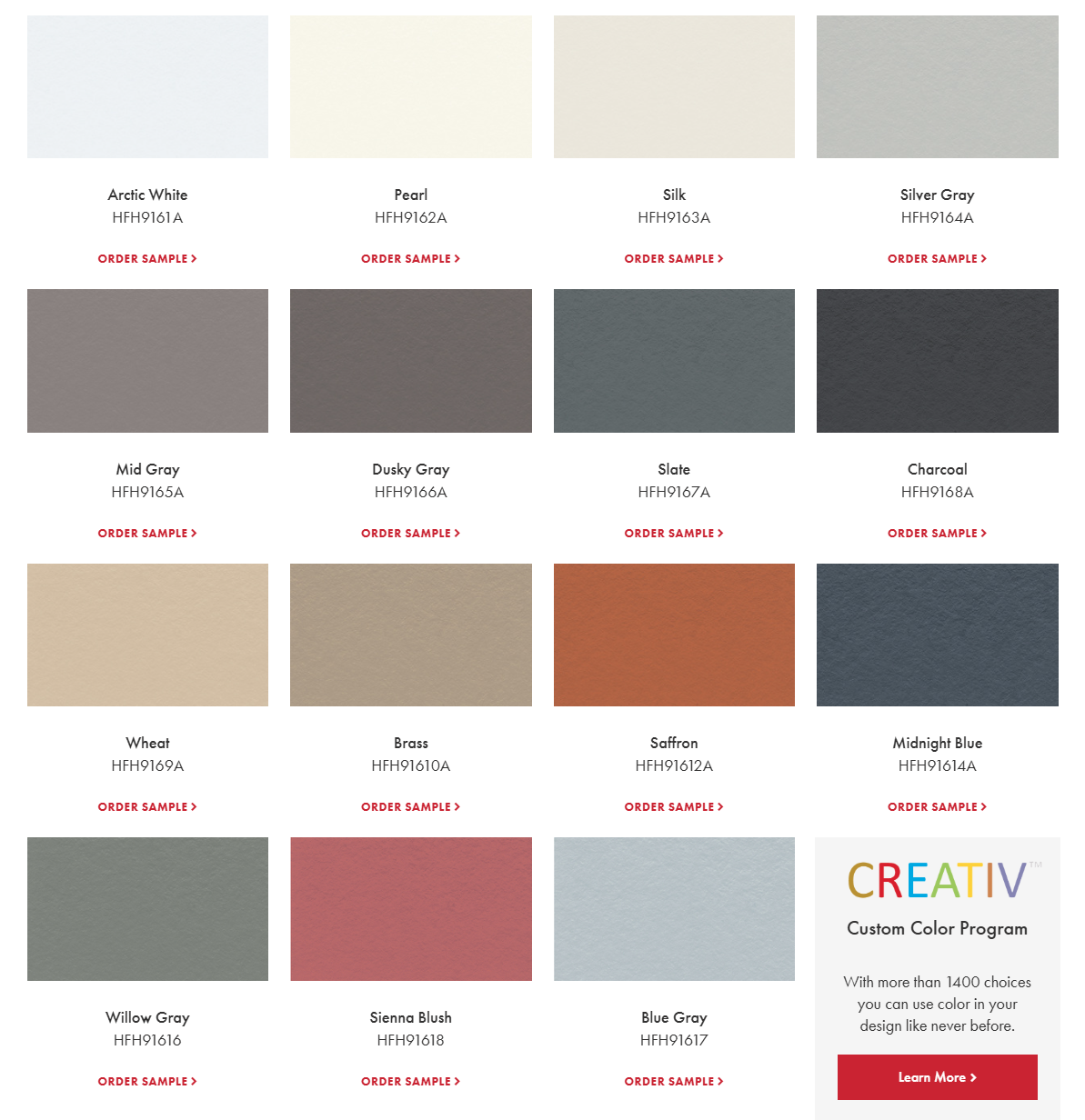

Standard Colours
15 standard colours and CREATIV Custom Color Program.

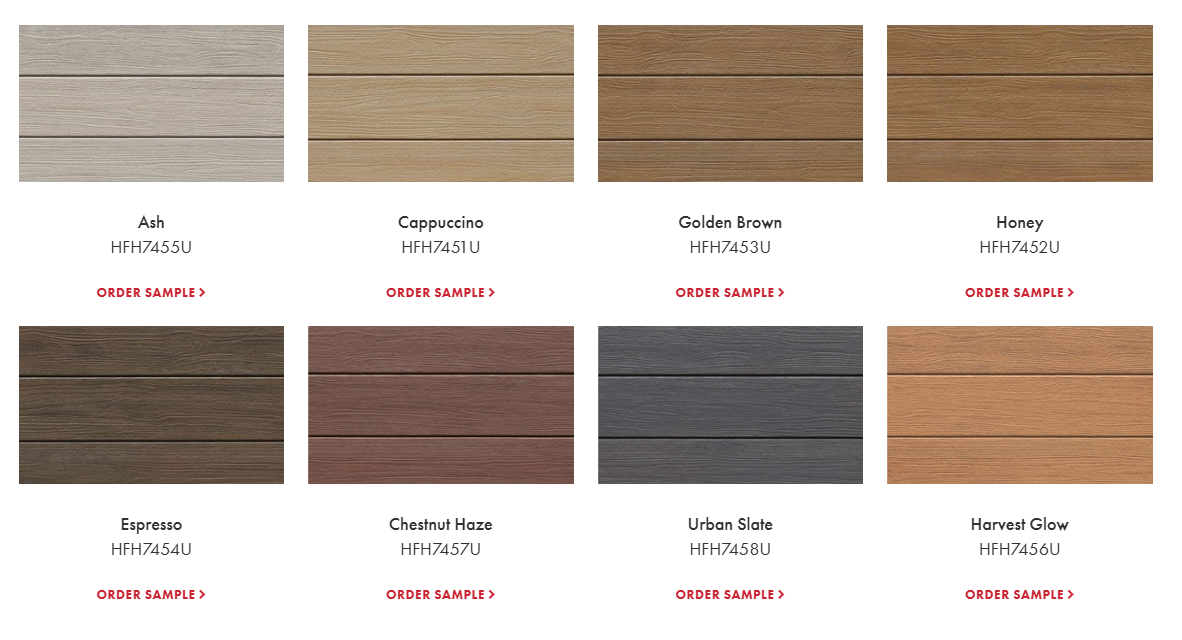

Wood Colours
8 standard wood colours
Concrete Colours
3+ standard concrete colours

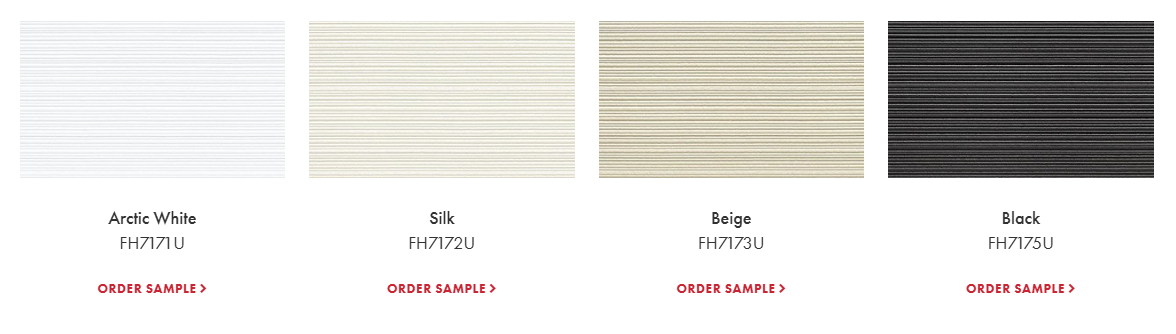

Original Design Colours
4+ original design colours

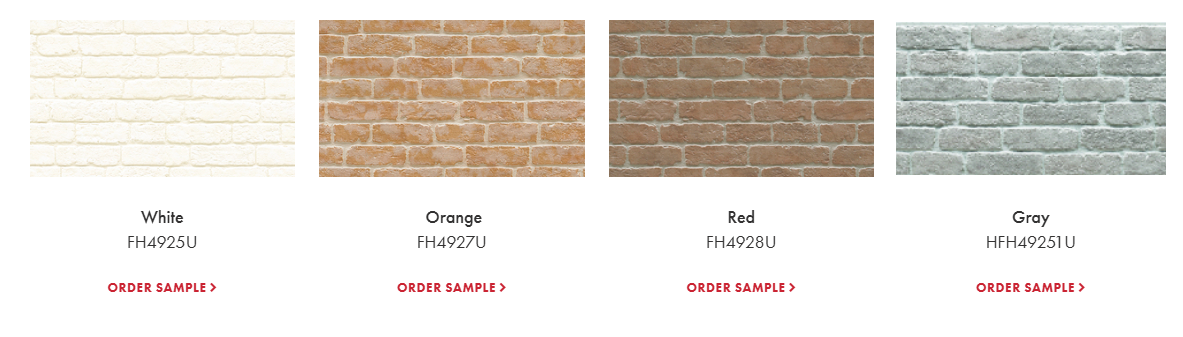

Stone + Brick Colours
4+ standard stone + brick colours
